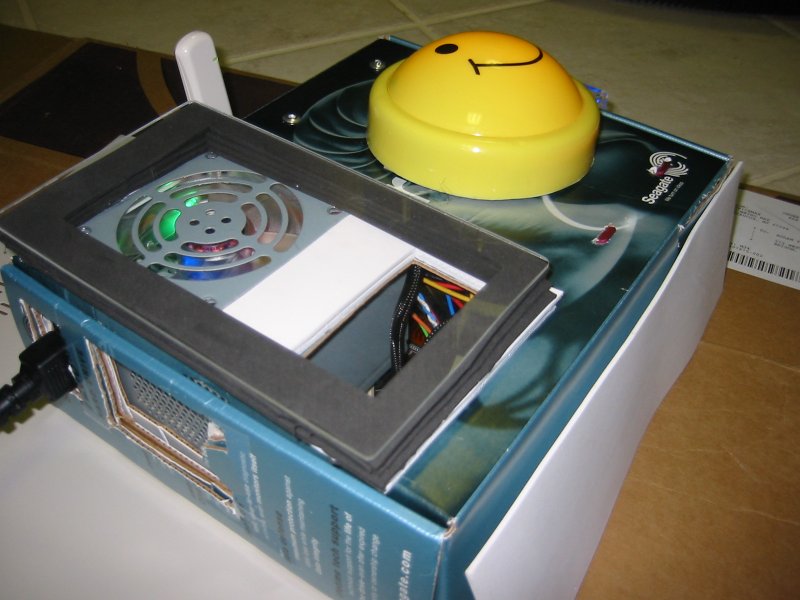

Before I installed the blue fan, there was only an air hole cut out next to the CPU.
Temperature testing revealed that the CPU rapidly heated to 60 C (Max rating for the VIA C3 is 70 C).
The airflow was obviously not sufficient, so I created a ducting system in which the power supply fan drew air
from the CPU hole, across inside the box, up above the duct into the power supply and out to the left.
